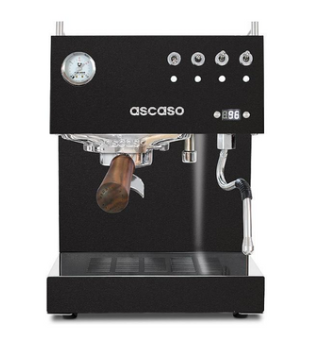

Ascaso Steel Duo PID (V1) Black
Ascaso Steel Duo PID (V1) Black
Ascaso Steel Duo PID
The Version 1 Ascaso Steel Duo PID is one of the earlier and cleaner industrial-style designs from the Spanish manufacturer Ascaso. Unlike the newer “Wood” editions, Version 1 features a minimalist stainless steel appearance with a plain metal plate steam control area instead of the walnut steam lever and wooden accents.
Built around Ascaso’s dual thermoblock system, the Steel Duo PID is designed for home baristas and specialty coffee enthusiasts who want fast heat-up times, simultaneous brewing and steaming, and highly stable temperature control in a compact footprint. The machine combines commercial-style features such as a 58 mm portafilter, programmable volumetric dosing, adjustable pre-infusion, and PID temperature management, while still remaining suitable for home kitchens and small studio coffee setups.
One of the biggest strengths of the Steel Duo PID is its workflow speed. Thanks to the independent thermoblocks, the machine heats up significantly faster than traditional dual boiler machines while still allowing espresso extraction and milk steaming at the same time. The industrial toggle switches, integrated shot timer, brew pressure gauge, and illuminated work area further give it a very “prosumer café equipment” feel. (Ascaso)
Key Features
-
Dual stainless steel thermoblock system
-
PID temperature control
-
Simultaneous brewing and steaming
-
58 mm commercial portafilter
-
Adjustable pre-infusion
-
Programmable volumetric dosing
-
Brew pressure gauge
-
Fast heat-up time
-
Stainless steel body construction
-
No-burn steam wand
-
Active cup warmer
-
Side-access removable water tank
-
Industrial toggle switch interface
Full Specifications
| Specification | Details |
|---|---|
| Machine Type | Semi-automatic espresso machine |
| Heating System | Dual thermoblock |
| Temperature Control | PID controlled |
| Brew Temperature Range | Approx. 90°C – 106°C |
| Steam Temperature Range | Up to 165°C |
| Pump Type | Vibratory pump |
| Brew Pressure | 9 bar |
| Portafilter Size | 58 mm commercial standard |
| Water Tank Capacity | 2 L removable side tank |
| Power Consumption | 2068–2100 W |
| Voltage | 230 V |
| Dimensions | 270 × 360 × 315 mm |
| Weight | Approx. 15 kg |
| Body Material | Stainless steel |
| Steam Wand | Stainless steel cool-touch/no-burn |
| Hot Water Outlet | Yes |
| Pre-infusion | Programmable |
| Volumetric Dosing | Dual programmable buttons |
| Shot Timer | Integrated digital display |
| Cup Warmer | Active heated top tray |
| Simultaneous Brew & Steam | Yes |
| OPV Adjustment | Adjustable |
| Warm-up Time | About 2–3 minutes |
| Origin | Spain |
(Ascaso)
Design Notes for Version 1
The Version 1 configuration is easily recognised by:
-
Fully stainless steel industrial styling
-
No walnut handles or wood accents
-
Metal plate steam control cover
-
Classic toggle switch layout
-
Earlier clean minimalist front panel design
Many enthusiasts still prefer Version 1 because of its more professional café-inspired appearance and simpler aesthetic compared to the later wood-trim variants.
