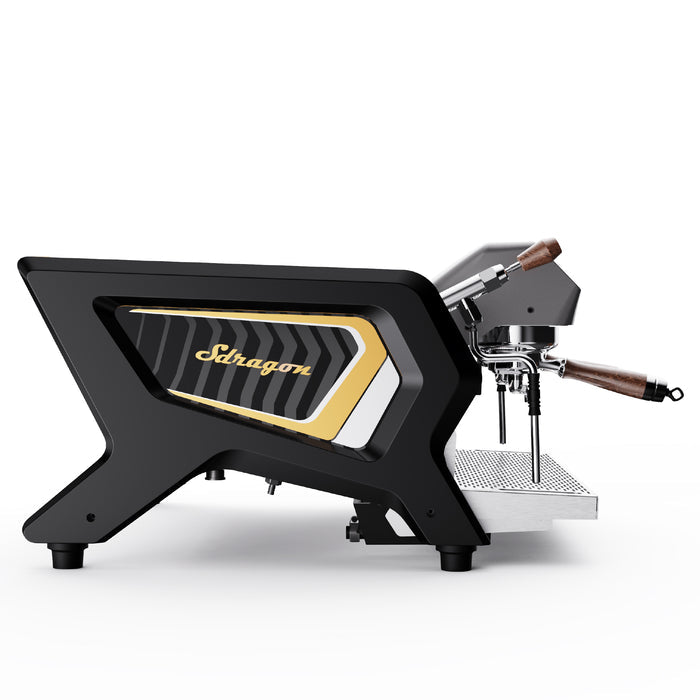

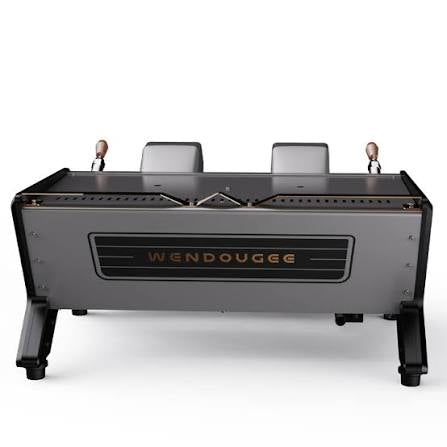

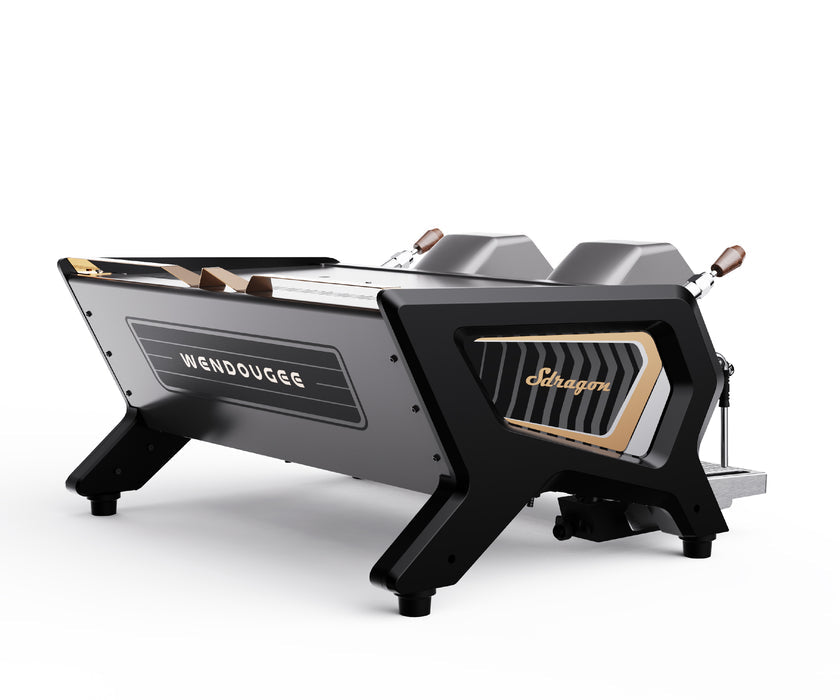

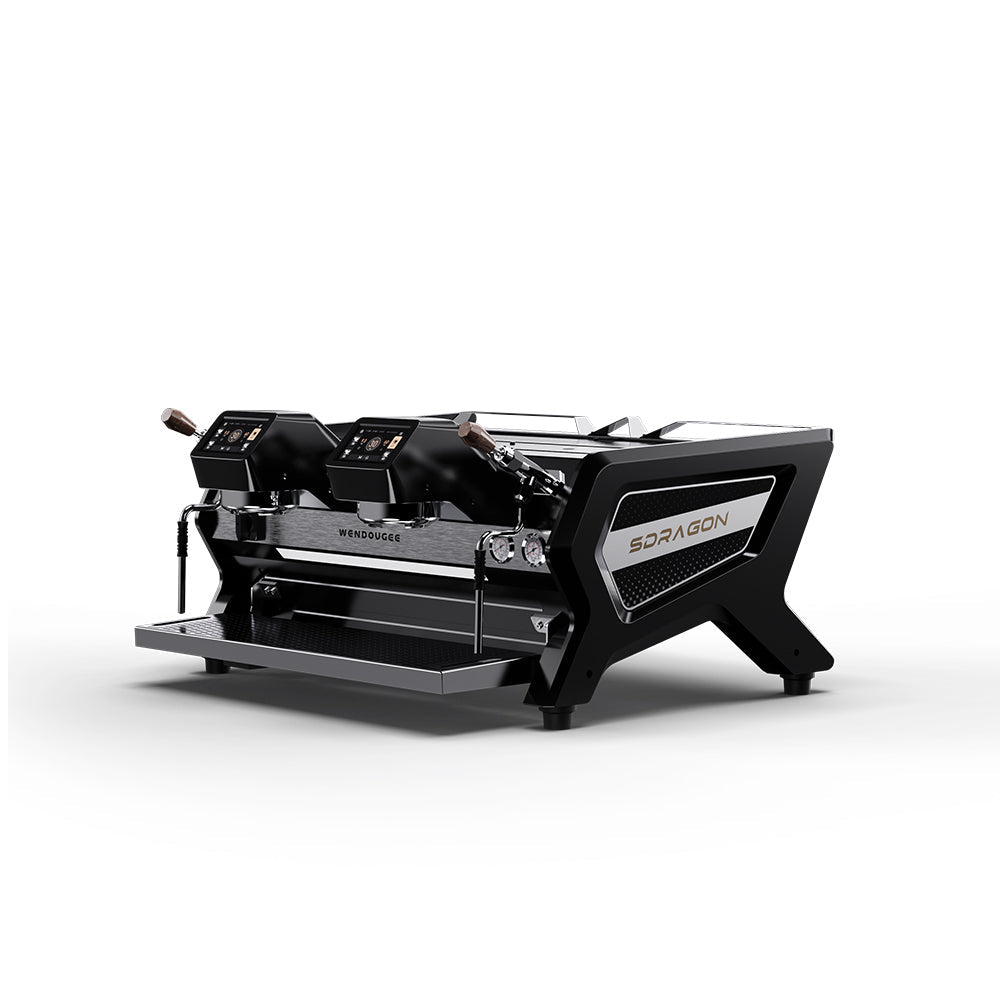

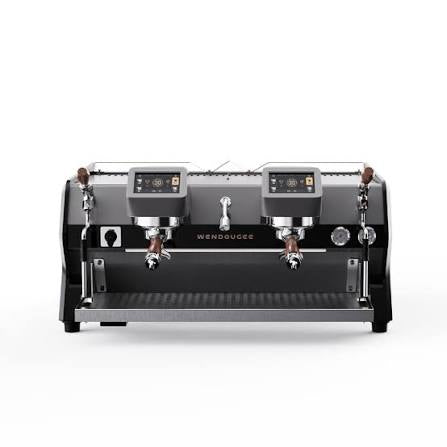

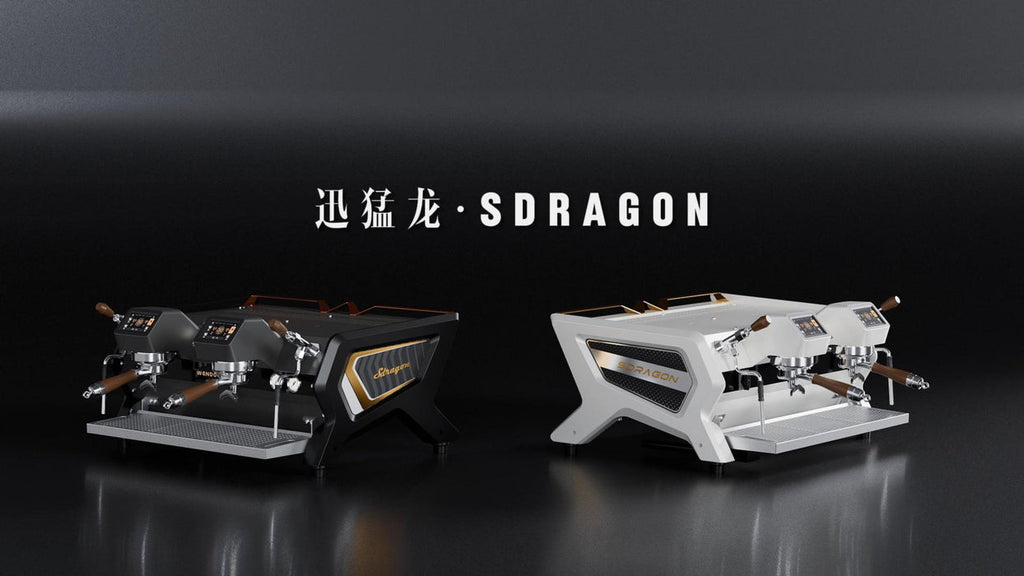

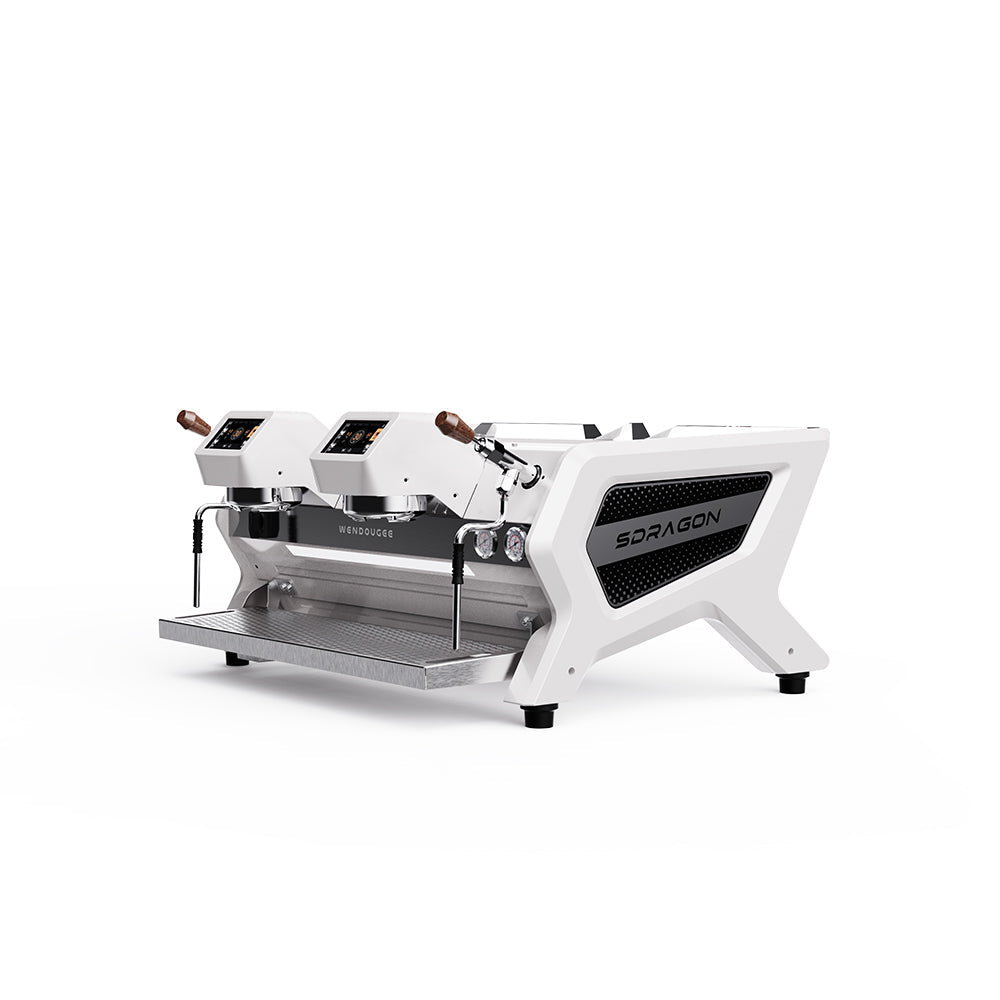

Wendougee S Dragon 2 Group

The Wendougee S Dragon 2 Group is Wendougee’s flagship commercial espresso platform designed for modern specialty coffee environments that demand precision, thermal stability, workflow efficiency, and consistency under heavy service volume.

Rather than following a traditional Italian heat-exchanger philosophy, the S Dragon is engineered around a saturated group multiboiler architecture — a design approach commonly associated with higher-end commercial machines from brands like La Marzocco, Synesso, and Slayer.

What makes the S Dragon especially attractive is that it combines:

• saturated group stability
• independent PID temperature control
• touchscreen workflow
• adjustable pre-infusion
• commercial rotary pump performance
• modern extraction-focused engineering

…while still maintaining a relatively aggressive price point compared to established premium commercial espresso machines.

The machine is clearly designed with specialty coffee workflows in mind — especially for cafés serving:

• lighter roast espresso
• high-precision milk drinks
• seasonal coffees
• rotating single origins
• recipe-based extractions

Core Design Philosophy

1. Saturated Brew Group Technology

One of the S Dragon’s biggest highlights is its saturated group head system.

In this setup, the brew group is thermally integrated directly with the coffee boiler. This significantly reduces temperature fluctuation between shots and keeps the extraction environment extremely stable.

Benefits include:

• better shot consistency
• reduced temperature drift
• improved clarity and sweetness
• more stable extraction during rush periods
• better performance with light roast espresso

For specialty cafés, this matters enormously because even small temperature changes can alter:

• acidity
• body
• sweetness
• extraction balance

Dual Boiler System

The S Dragon uses a true dual boiler configuration:

• 8.7L steam boiler
• 3.5L coffee boiler

constructed in stainless steel.

This setup allows:

• simultaneous brewing and steaming
• independent brew/steam temperature control
• faster recovery during peak hours
• stable steam pressure even under heavy usage

Compared to traditional HX systems, the S Dragon offers far greater thermal precision and consistency.

PID Temperature Control

Each boiler can be individually controlled using digital PID temperature management through the touchscreen interface.

Advantages:

• precise brew temperature adjustments
• easier dialing-in for different coffees
• consistent espresso across multiple baristas
• better roast profile adaptability

This is especially useful if your café rotates coffees frequently.

Example:

• Ethiopian natural → lower temperature
• Colombia washed → medium temperature
• medium-dark blend → higher temperature

The machine allows those adjustments with precision.

4.3” Touchscreen Interface

The S Dragon features a modern 4.3-inch touchscreen display.

The interface provides:

• boiler temperature management
• shot programming
• extraction monitoring
• diagnostics
• cleaning cycle management
• workflow adjustments

Some versions also include:

• live status graphs
• extraction visualization
• recipe programming

The interface feels much more “modern café” compared to older commercial machines that rely heavily on manual switches and analog controls.

Adjustable Pre-Infusion

The machine supports adjustable pre-infusion control.

This allows the barista to:

• soften channeling
• improve extraction evenness
• enhance sweetness
• reduce bitterness
• tune extraction behavior for different coffees

Pre-infusion becomes especially important when working with:

• light roast coffees
• high-density beans
• modern espresso recipes
• turbo-style extractions

Commercial Rotary Pump

The S Dragon uses a commercial-grade rotary/vane pump system.

Advantages:

• quieter operation
• stable extraction pressure
• improved longevity
• smoother pressure delivery
• suitable for plumbed café installation

Compared to vibration pumps, rotary systems are:

• more durable
• more consistent
• more commercial-ready

Workflow & Café Usability

The machine is designed for high-volume café environments.

Key workflow-focused features include:

• simultaneous brew and steam
• large cup warmer
• extended drip tray
• touchscreen workflow
• programmable volumetrics
• cold-touch steam wand
• dual group productivity

Some distributors also offer integration with Wendougee grinders for semi-automated calibration and shot correction systems.

This creates a highly repeatable ecosystem aimed at reducing:

• coffee waste
• barista inconsistency
• dialing-in time

Build Quality

The machine uses:

• industrial stainless steel body
• forged internal components
• commercial-grade construction

It has a very modern industrial aesthetic compared to traditional Italian chrome-heavy machines.

The design language feels closer to:

• modern specialty cafés
• minimalist coffee bars
• Scandinavian/Japanese café aesthetics

rather than classic Italian espresso styling.

Full Specifications

Dimensions

Machine Dimensions

• Width: 76 cm
• Depth: 67 cm
• Height: 39 cm

Weight

• 70 kg

The machine has a relatively low-profile height for a commercial 2-group machine, which helps improve:

• customer interaction
• café openness
• bar visibility
• workflow ergonomics

Who Is This Machine Best For?

Ideal For:

• specialty coffee cafés
• medium to high-volume cafés
• coffee bars serving light roast espresso
• roasteries with retail bars
• training labs
• modern café concepts
• barista competition practice environments

Less Suitable For:

• extremely high-volume chain operations
• cafés wanting traditional E61-style workflow
• operators preferring fully manual analog systems
• locations without proper power setup (5500W requirement)

Strengths

Major Advantages

• saturated group stability
• strong value proposition
• modern workflow design
• dual boiler consistency
• PID precision
• touchscreen interface
• excellent for specialty coffee
• compact height for a 2-group machine
• modern café aesthetics

Potential Considerations

Things to Note

• relatively newer ecosystem compared to legacy Italian brands
• service support depends heavily on distributor quality
• touchscreen workflow may not appeal to traditionalists
• 5500W power requirement needs proper electrical planning
• learning curve slightly steeper for inexperienced baristas

Overall Impression

The S Dragon feels like a machine built specifically for the current specialty coffee industry rather than traditional espresso culture.

It prioritizes:

• consistency
• precision
• repeatability
• workflow efficiency
• extraction quality

over nostalgia or old-school café styling.

For a specialty-focused café like ASK Coffee Roastery, the machine makes a lot of sense because it supports:

• seasonal coffees
• changing recipes
• high extraction precision
• training workflows
• modern espresso profiling approaches

It sits in a very interesting space between:

• traditional Italian commercial machines
  and
• ultra-premium modern specialty platforms.
